Dr. Sameer Parmar — SWL Protocol Summary
Generated report based on selected clinical scenario variables.
| Location | — |
|---|---|
| Stone Density | — |
| Stone Size | — |
| Patient BMI | — |
| Total SW | — |
|---|---|
| Peak Energy | — |
| Frequency | — |
| Renal Safety | — | |
|---|---|---|
| Stone Sensing | — | |
| Fragmentation | — | |
| Dusting / Finishing | — |

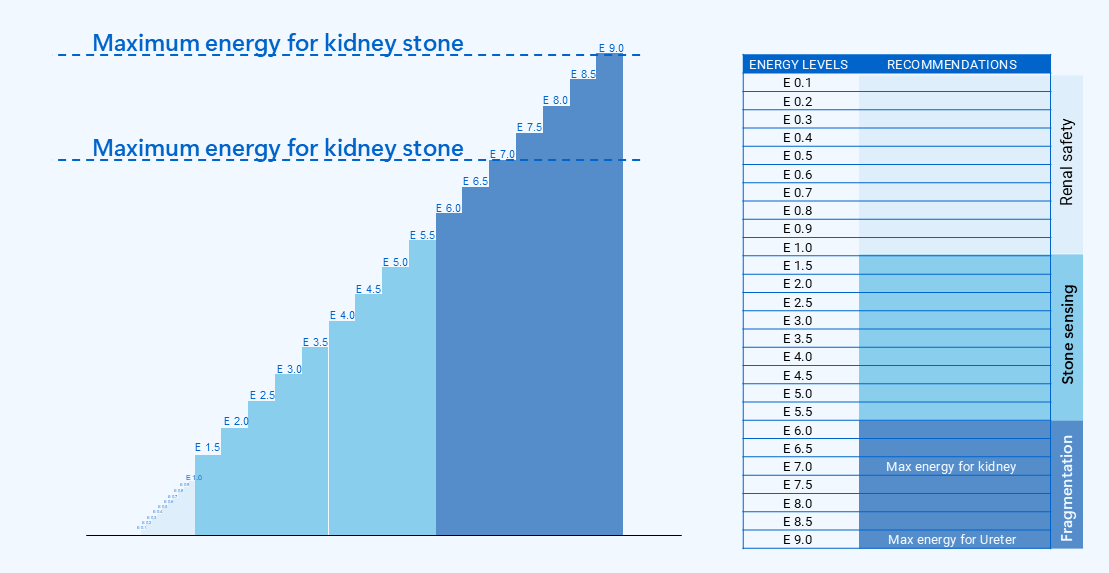

Understanding the Energy-Range Pathway
This visual is designed to help the operator understand the full energy-range pathway used in a structured SWL ramping strategy, including the recommended maximum energy for kidney and ureteric treatments.
It is important to note that this is not a scale taken from any specific commercial lithotripter. As Dr. Sameer Parmar, we propose this as an idealised energy profile that supports better control of each phase of lithotripsy: conditioning, sensing, fragmentation, and finishing.
Why this helps
It makes the energy pathway predictable and teaches the concept of "phase-based control" rather than rapid escalation. A structured ramp prevents unnecessary tissue stress and improves stone interaction at each threshold.
How to use it
Match your protocol's target Emax and ramping steps to your device's own energy scale. The profile is device-agnostic by design — it represents a conceptual ideal, not a manufacturer's setting.
Outcome focus
Smoother ramping, clearer phase transitions, and more consistent tissue-respecting technique. Use this as a training reference to understand strategy and sequencing, not as a device-specific setting.

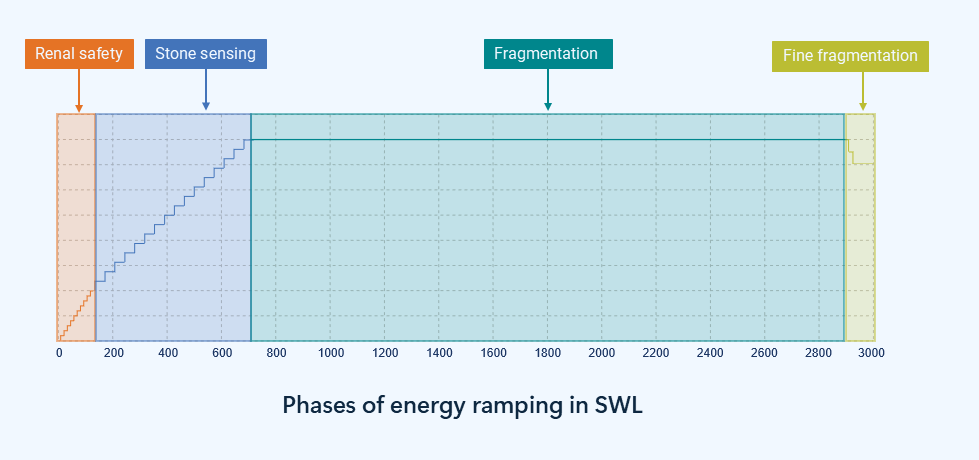

Introduction: Why Ramping Matters in SWL
Shock Wave Lithotripsy is not a single-energy, single-speed treatment. The way energy is introduced, increased, maintained, and reduced has a direct impact on stone fragmentation, tissue safety, and overall outcomes.
Ramping is the structured progression of shockwave energy during treatment. When done correctly, it allows the kidney and the stone to respond gradually, improving fragmentation efficiency while minimising tissue injury. Rather than treating all stones the same way, ramping adapts the treatment to stone behaviour and patient factors.
1) Renal Safety Phase
This is the initial conditioning phase of treatment. Low-energy shockwaves are delivered at the beginning to prepare renal tissue for higher energy exposure. At this stage, stone fragmentation is not the goal. The focus is organ protection and safe physiological adaptation.
2) Stone Sensing Phase
Once the kidney is conditioned, energy is increased gradually. This phase allows shockwaves to interact with the stone at multiple energy thresholds, initiate microcrack formation, and prepare the stone structure for efficient fragmentation. This phase is especially important for dense stones, where sudden high energy can be inefficient and counterproductive.
3) Stone Fragmentation Phase
This is the main therapeutic phase of SWL. Energy is maintained at the target level appropriate for stone size, density, location, and patient habitus. Sustained shockwave delivery exploits the microfractures created earlier, leading to progressive stone breakdown into passable fragments.
4) Dusting or Finishing Phase
In the final phase, energy is deliberately reduced. Lower energy shockwaves help refine residual fragments into smaller particles while minimising unnecessary tissue stress. Not every case requires a pronounced dusting phase, but when used appropriately, it adds finesse to the overall treatment.
Key Takeaway for the Operator
Ramping is not about reaching peak energy quickly. It is about timing, sequencing, and respecting tissue response. A structured ramping strategy transforms SWL from a purely mechanical process into a controlled, patient-centric therapy.
Educational purpose only. This protocol is intended for training and education and must not be used as a clinical directive. Clinical decisions remain the responsibility of the treating physician and institution.
